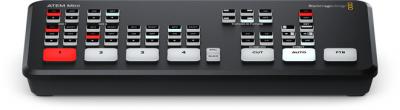

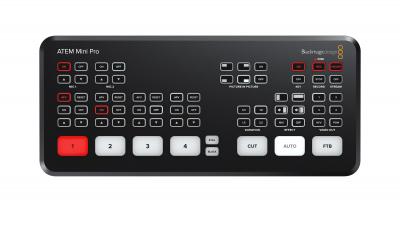

Blackmagicdesign ATEM Mini Pro - IN STOCK

ATEM Mini features 4 HDMI inputs and has an intuitive, easy to use design that makes it possible for anyone to live stream multi camera productions online via services and software such as YouTube Facebook Live or even Skype. Simply
connect 4 high quality HDMI inputs that can be used for live switching cameras,

computers or even game consoles. You get a built in DVE for exciting picture in picture e ects, broadcast quality transitions, upstream keyers for removing blue and green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. To stream, ATEM Mini also has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors.

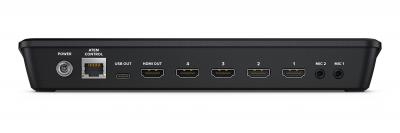

Connections

Total Video Inputs

Total Outputs

Total Aux Outputs

Total Audio Inputs

2 x 3.5mm stereo mini jack.

Total Audio Outputs

None, embedded audio only.

Timecode Connection

None

HDMI Video Inputs

4 x HDMI type A, 10-bit
HD switchable.
2 channel embedded audio.

Video Input Re-Sync

On all 4 HDMI inputs.

Frame rate and format convertors

On all 4 HDMI inputs.

HDMI Program Outputs

Computer Outputs

1 x USB Type-C 3.1 Gen 1.

Product Speci cs

Upstream Keyers

Downstream Keyers

Advanced Chroma Keyers

Transition Keyer

DVE only.

Total Number of Layers

Pattern Generators

DVE with Borders and Drop Shadow

Interface

Minimum monitor resolution of 1366 x 768.

Linear/Luma Keyers Color Generators

Media Player

Media Players

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with ll and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM Mini supports direct USB-C connection.

Control Panel Compatibilty

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.

Control Panel Included

ATEM Software Control Panel included free for Mac 10.13
High Sierra, Mac 10.14 Mojave or later and Windows 10.

Software

Software Updates

Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Con guration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

What's Included

ATEM Mini
External 12V power supply with locking connector and international socket adapters

Warranty

12 Months Limited Manufacturer's Warranty.

Model: SWATEMMINIBPR
Shipping Weight: 0.9Kg
Manufactured by: Blackmagic Design

Ask a Question

€335.00
